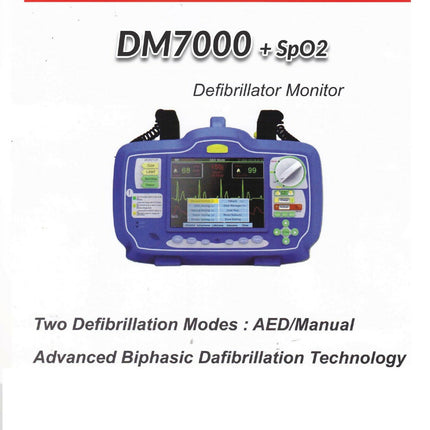

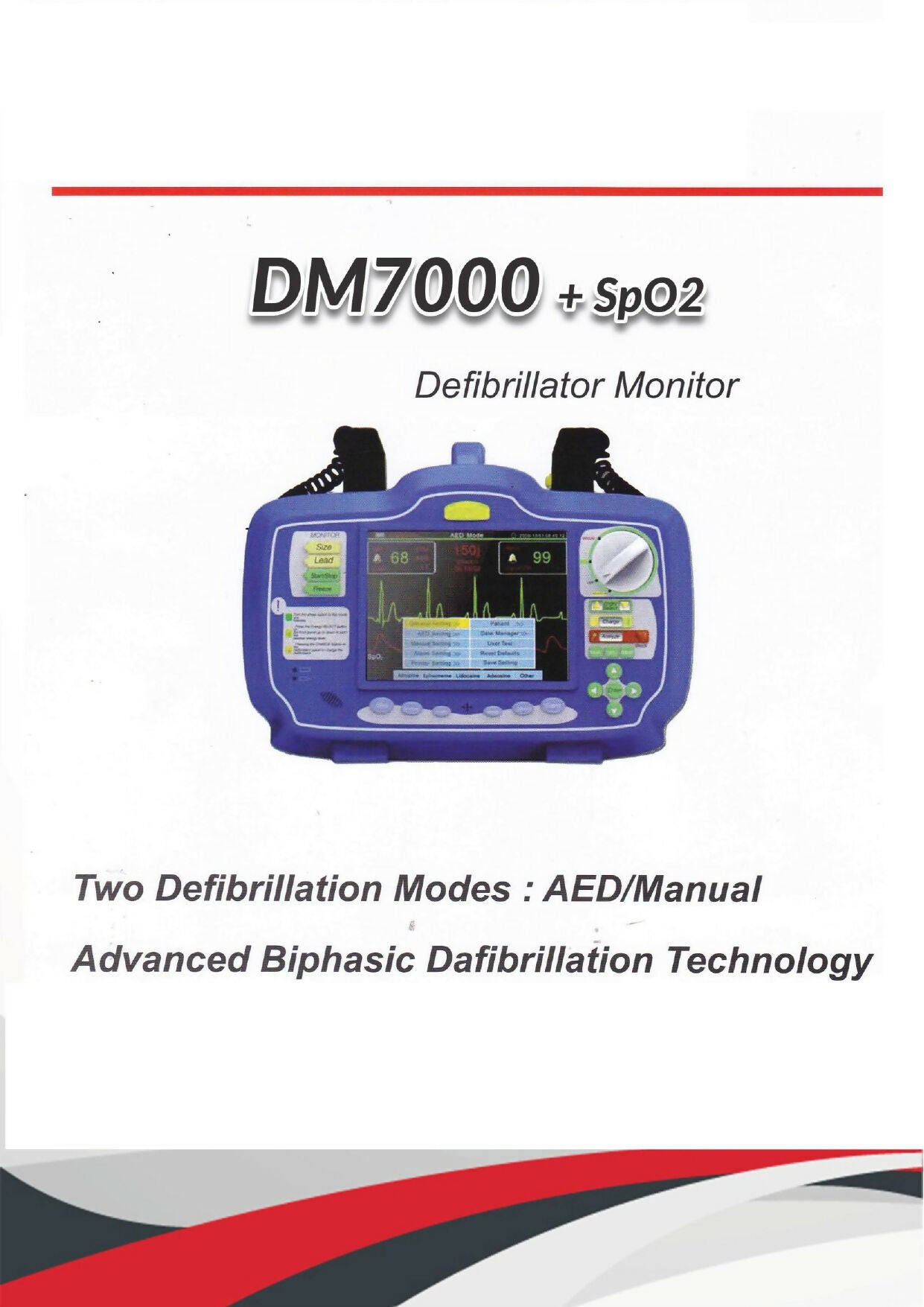

DEFIBILATOR

Display
Screen Type :High - resulution display
Screen Size : 7" (17.7cm) diagonally
Sweep Speed : 25 mm/sec
Informasion : Heart Rate, Lead/Pads,Alaram On/Off,SpO2, AED Fuctions and Prompts, Alaram Selection andLimits, Deliverd Energy

Defibrillator
Wavefrom : Biphasic
Energy Display : Monitor display indicates both selectedand delivered energy
Charge Prompt Type : Voice and visual prompts
Electrode  Impedence Meansurement Reang : 0-250 ohms

ECG Monitoring
Patient Connection : 3-leadECG cable, or 5-lead ECG cable, paddles
LeadSelection : Displayed on monitor,peddles, I,II,III,AVR,AVL,AVF,V
ECG Size :0.25,0.5,1,1.5,2,4 cm/mV display on monitor.
Heart Rate : 20-300BPM
Heart Rate Alaram : On/Off displayed on monitor, user-selectable
Smart Alarams : Beeper/Voice prompts indicate shockable rhythm

Battery
Type : rechargeable, Ni-MH battery, 12V

Sp02 Module
Measurement Range : 30~100%, ±2% between 80%~90% others ±5%
Alarm Range : User set higt limit and low limit
Alaram Accuracy : ±10% within setting values
Alarm time Accuracy : less than 12 sec

Recorder
Paper : 50mm thermal
Speed :12.5mm/sec, 25mm/sec, 50mm/sec User-selectable 6-second delay
Printing Method : High-resolution,themal array prin head
Print -out Modes : Manual or automatic, user - configurable
On/Off Control : Front panel andpaddle
Automatic Function : 9-second recording initated by alaram activation or defibrillator charge or defibrillator discharge
AED Mode
AED Fuction : Auto analyze and charge x3 with programmable auto energy level selection, screen prompts, and voice prompts
Shockable Rtythms : Ventricular fibrillation ,vetricular techycardia , QRS complex wave duration
Charge control : Control on device frint panel, press key onpaddle

Manual Mode:
Energy selection : Selectable at 2,5,7,10,20,30,50,70,100,150,200,300,360 joules
Synchronized Mode : Synchronizes defibrillator pulse to patient's
R-wave "SYNC" messge display
