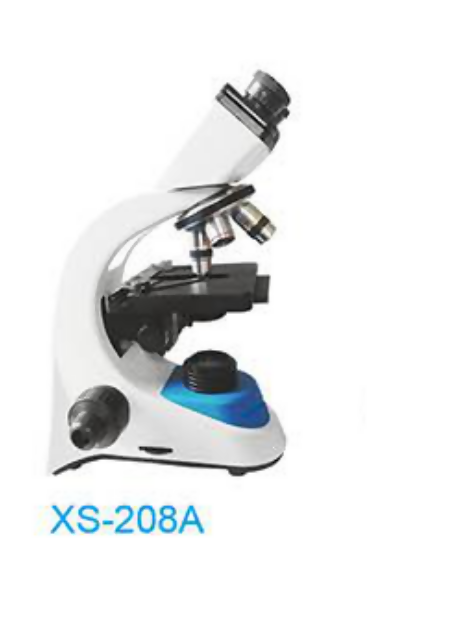

MIKROSKOP

Specification :

Viewing Head
Sliding Binocular Head Inclined at 45°
Sliding Trinocular Head Inclined at 45°
Compensation Free Binocular Head inclined at30°
Compensation Free Trinocular Head  inclined at30°

Nosepiece
Ball Beating Quadruple Nosepiece

Eyepiece
Wide Field Plane-scope Eyepiece: WF10X/18mm

Objective
Achromatic 4X,10X,40x(Spring)100x(Spring,Oi)
Infinite Plan Achromatic 4X,10X,40x(Spring)100X(Spring,Oil)

Stage
Double Layer Mechanical Stage 135*140mm

Condenser
ABBE NA1.25 condenser with Iris Diaphragm &filter,rack&pinion adjustable

Illumination
Build-in lumination,LED lamp
Power supply AC110/220V±10%,50/60Hz
Package Carton with foam
Package size 250*360*460mm
Gross weight 8kg
